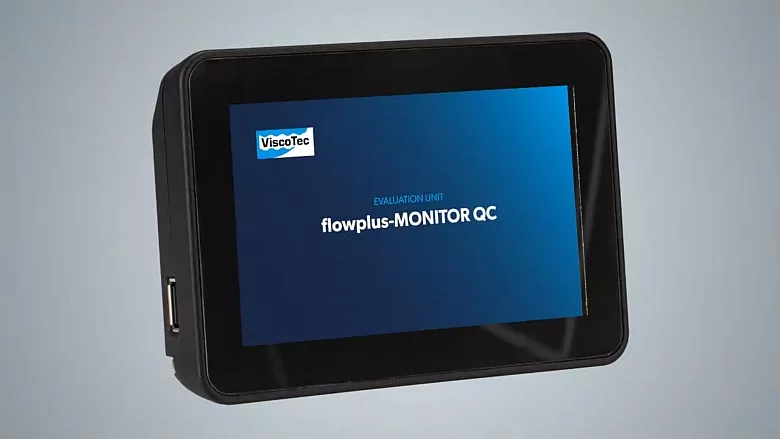

Users who operate a stand-alone dispenser can monitor and evaluate their pressures in the dosing process with the flowplus-MONITOR QC analysis unit. It can be used flexibly for monitoring 1-component and 2-component systems. Optionally, one channel can also be assigned with the inlet pressure and the other with the signal for the dosing pressure. This opens up more quality assurance options, especially for customers with older control models - the data can be recorded, saved, and evaluated. The measurement values are exported and documented via USB. The interface is used to install updates for the analysis unit.

The flowplus-MONITOR QC has a 15-pin sub-D interface, which makes connection to higher-level systems simple. Start-up is easy with Plug & Play; the sensors are connected to standardized, four-pin M8 flange sockets. Voltage signals between 0 and 10 V are processed, which makes the analysis unit together with the flowplus16 or flowplus-SPT M6 sensors the optimal quality assurance instrument. It can switch between the respective value ranges of 0-16 bar (flowplus16) or 0-40 bar (flowplus-SPT M6) in the settings. The 5” color touch display makes using the flowplus-MONITOR QC analysis unit intuitive. Pressure signals and limit curves are displayed in one view. Various screen levels ensure detailed parametrization of the measured values, and colored graphics make it easy to record the contents. Additionally, users have the option to evaluate their pressure signals via preset limit curves and ranges. These values are determined using Teach-In on the touch display.

The analysis unit works in a temperature range of between +10°C and +40°C and is in protection class IP20. Depending on the technical framework conditions, users can operate the flowplus-MONITOR QC analysis unit with a pedestal or mount it on individual brackets using the thread holes on the back. The flowplus-MONITOR QC analysis unit helps customers to safeguard their processes by detecting air inclusions in the material and recognizing blocked dosing needles, enabling error-free component production.

The analysis unit flowplus-MONITOR QC replaces the previously known analysis system flowscreen.
