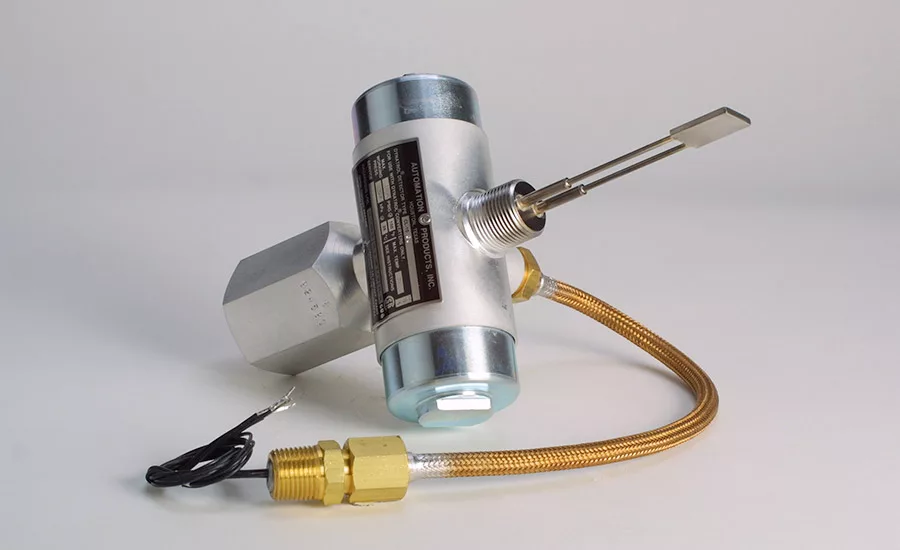

The Dynatrol® CL-10GP proportional level detector is reportedly specifically designed to control liquid levels in adhesives or sealants processing, small vessels, or anywhere it is necessary to obtain proportional level control over a precise range. The EC-103C(G) control unit is paired with a detector and can activate electro-pneumatic transducers, pumps, valve positioners, indicators, controllers, or other DC current devices.
According to the company, the Dynatrol CL-10GP proportional level detector and EC-103C(G) control unit accurately monitor and control an extremely precise liquid level range due to the unit’s high-resolution, proportional output signal. This control operates reliably under varying frequency power supplies or harsh process conditions, such as high pressures and high temperatures.
Installation is simple, and the separate control unit permits installation at any convenient location. The detector is mounted through a ¾-in. half-coupling at the point of desired level detection, eliminating costly flanges, float chamber, or fittings. The Dynatrol CL-10GP proportional level detector and EC-103C(G) control unit operate on either a 50- or 60-HZ power supply.
Dynatrol detectors are reportedly constructed for a long operating life and provide years of dependable service in industrial environments. All units are built in accordance with Class I, Group D; Class II, Groups E, F and G; and Class III services.
For more information, visit www.dynatrolusa.com.
