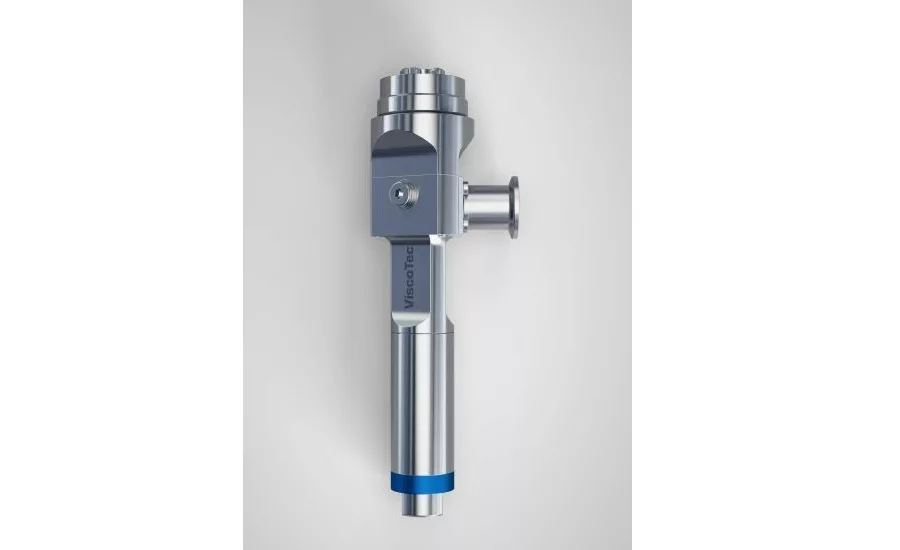

ViscoTec is launching a new generation of dispensers with its vipro-PUMP series. A new design, optimized dosing components, and a modular construction provide numerous opportunities for adapting the dosing equipment even more effectively to the relevant application. The core of the new generation is the modular design of the dispenser. The separable rotor assembly allows for fast installation and removal of its components, while variable rotor and stator materials ensure optimum dispenser performance. An enlarged pump inlet minimizes pressure loss, improves the material flow, and allows easy attachment and detachment of the hose supply.

Two larger modular bleed openings ensure a user-friendly and clean bleeding process and ultimately help to guarantee dosing with no air bubbles. The new stator design has an anti-rotation device and a defined non-positive connection to allow easy and intuitive assembly. Various drives can be attached to the dispenser using a locking ring and the newly designed coupling. The material outlet can optionally be fitted with the specially developed M6 pressure and temperature sensor. The flowplus-SPT M6 measures pressures up to 40 bar and temperatures up to 50 °C. The vipro-PUMP will be available in five different sizes (dosing volume of approx. 0.14 to 5.2 ml/rev) from 01.01.2023.

For more information, visit: https://www.viscotec.de/en/.
